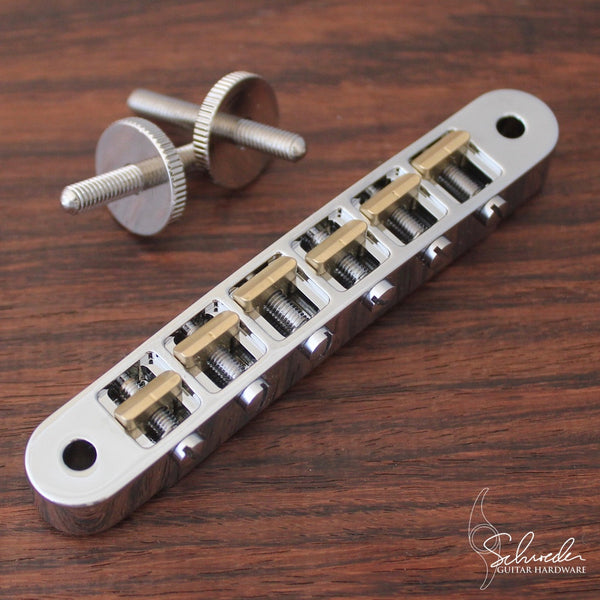

Schroeder Radiused Tune-O-Matic Bridge

Schroeder Radiused Tune-O-Matic Bridge

$120.00

Schroeder Radiused Tune-O-Matic Bridge

This item is temporarily out of stock due to material and machining delays. Please click below to be notified when it is back in stock.
The Schroeder Radiused Tune-O-Matic Bridge and Schroeder Stopbar are an excellent replacement for ABR Tune-O-Matic assemblies or for use on custom instruments.  This MAY fit other guitars, but please check the measurements on your guitar to verify.

*Post spacing is 73.8mm (2.91") and holes are designed to fit 5-32 (0.156" diameter SAE) or M4 (4mm diameter metric) posts.  Please verify post spacing and diameter before ordering.

Easily adapts to a 10” or 12” radius: The out-of-the-box bridge radius is 11” making it easily adjustable to 10” or 12” radius by fine tuning the saddles during setup.  String spacing:  2.0625" (2 1/16")

Quality materials and construction: Lightweight aluminum body, brass screws and saddles, and stainless steel clips.

Proudly milled in the USA.

Add the TOM Studs and Bushings for a new build.  These TOMs do NOT come with all-thread posts unless specifically requested.

If you'd like us notch the saddles for you, the cost is $10.   Please add THIS ITEM to your order and specify radius.  Want to do it yourself?  Check out our Tech-Tips Page (or see below) for further instructions.
