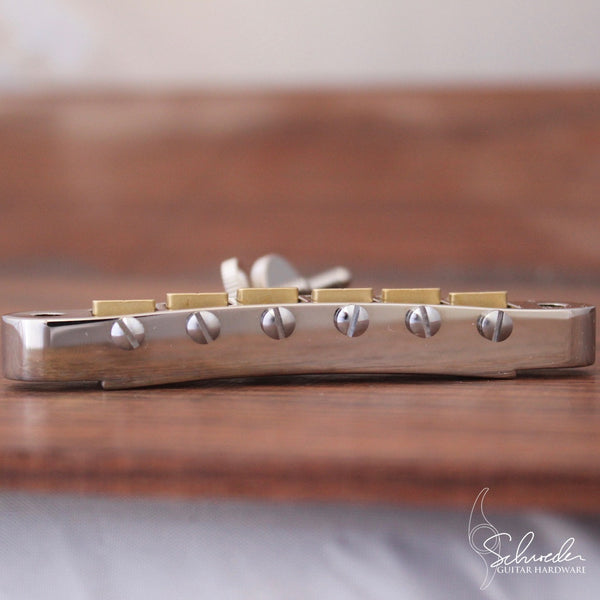

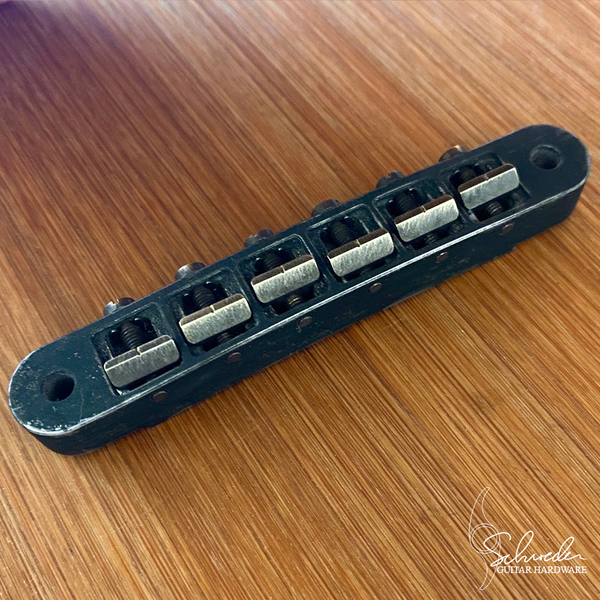

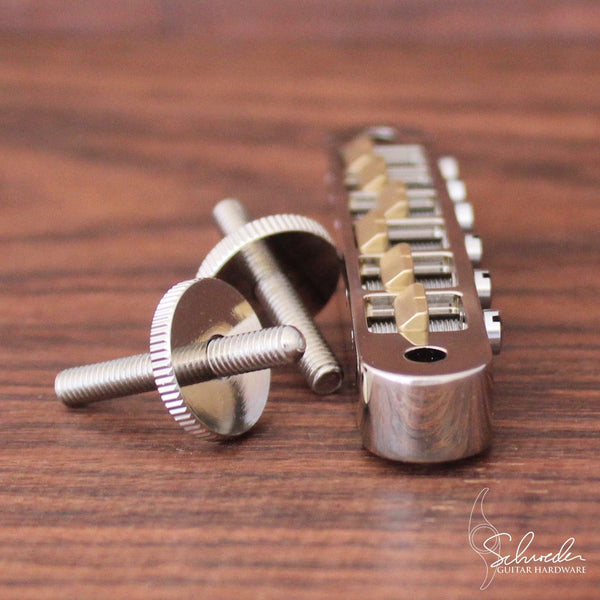

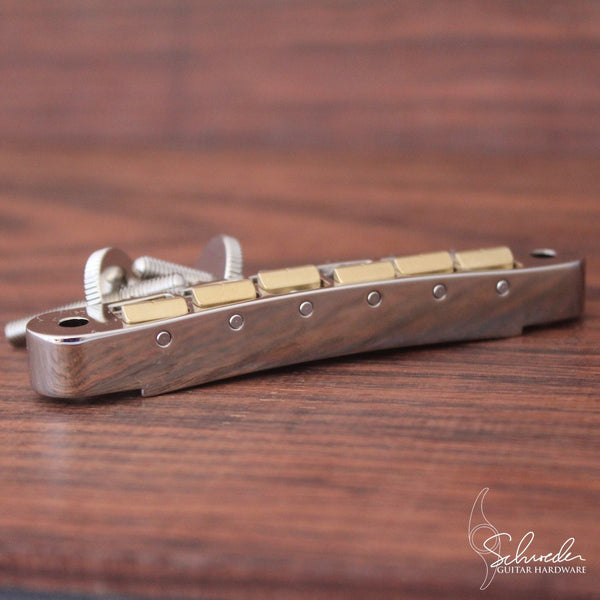

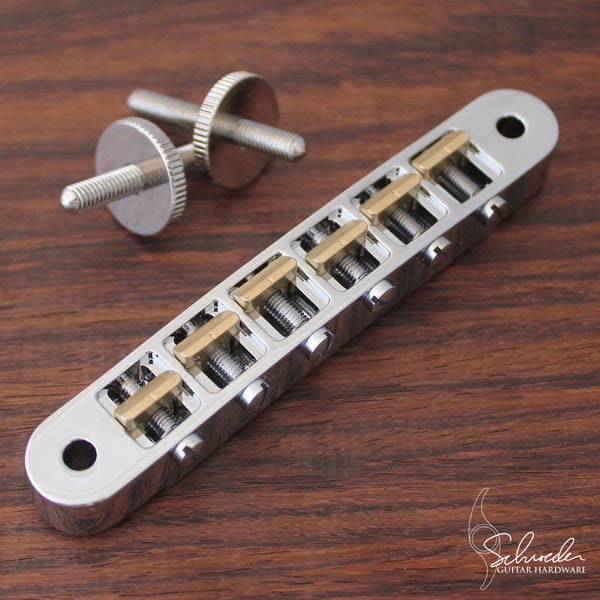

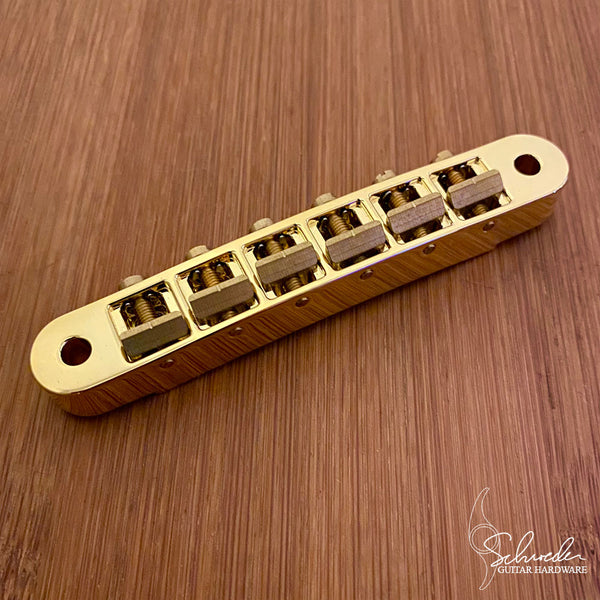

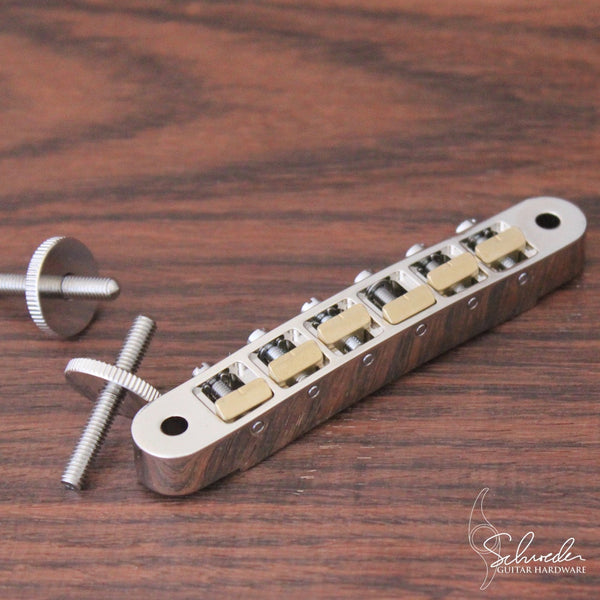

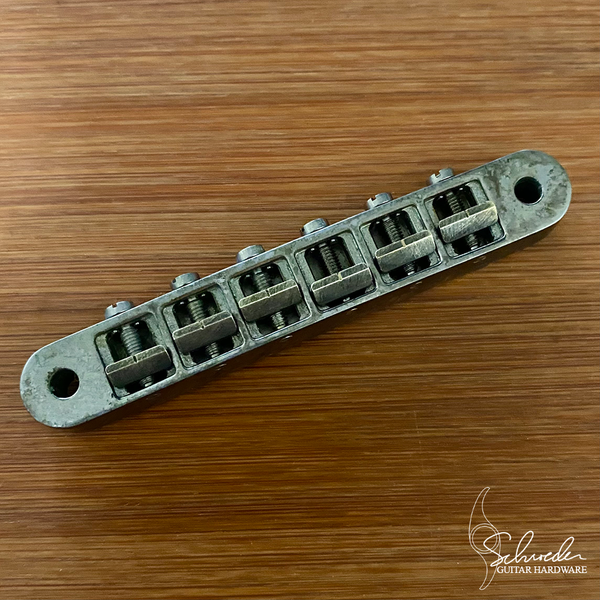

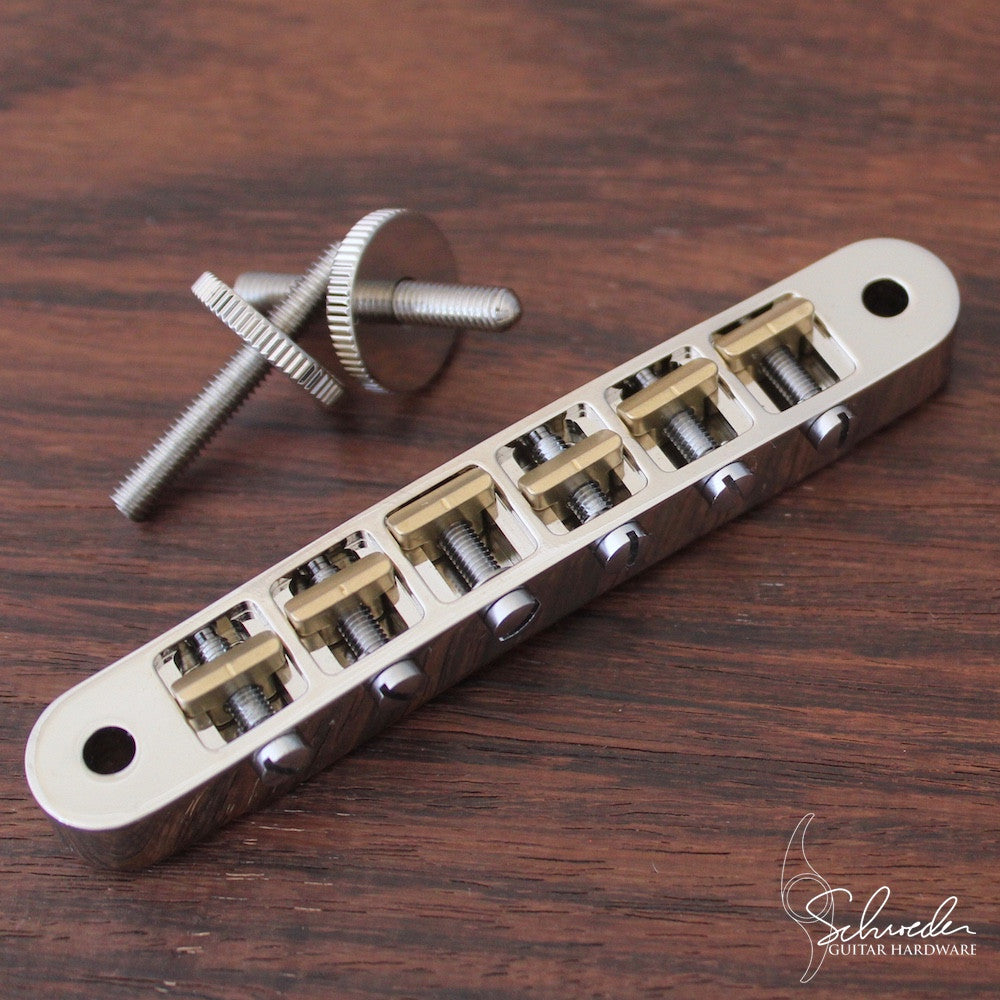

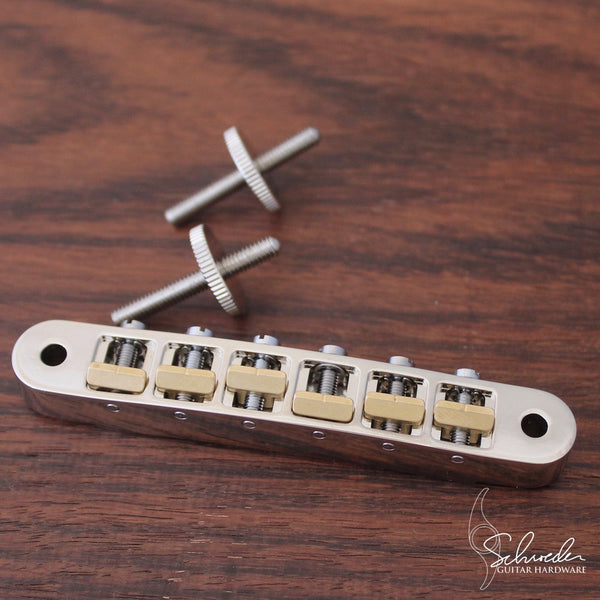

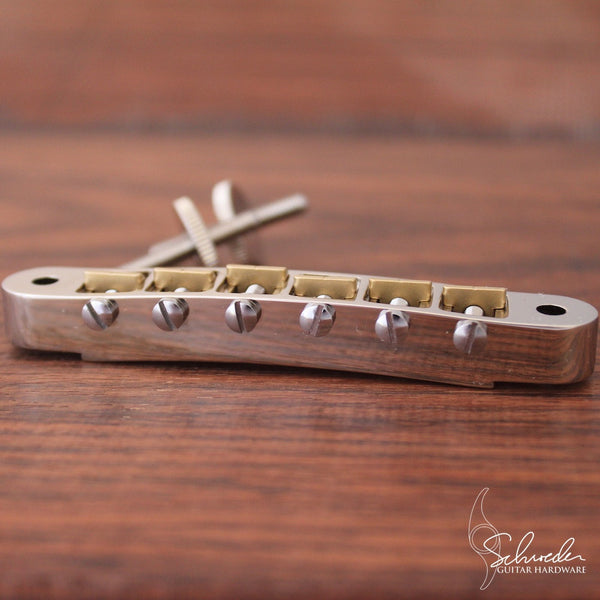

Schroeder Radiused Tune-O-Matic Bridge

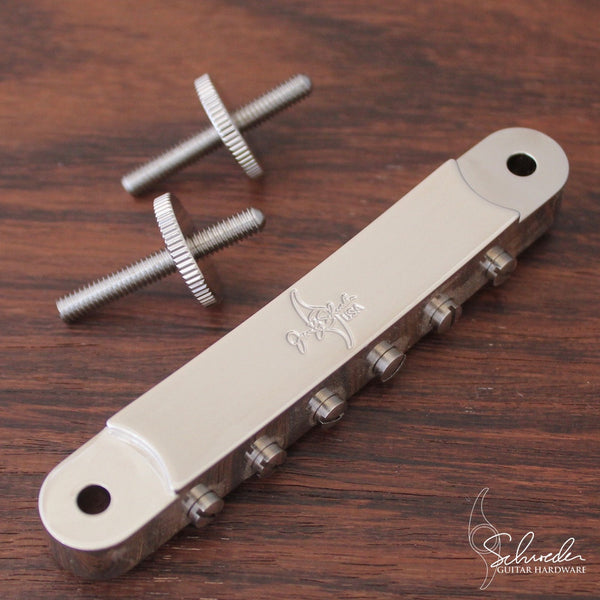

The Schroeder Radiused Tune-O-Matic Bridge and Schroeder Stopbar are an excellent replacement for ABR Tune-O-Matic assemblies or for use on custom instruments. This MAY fit other guitars, but please check the measurements on your guitar to verify.

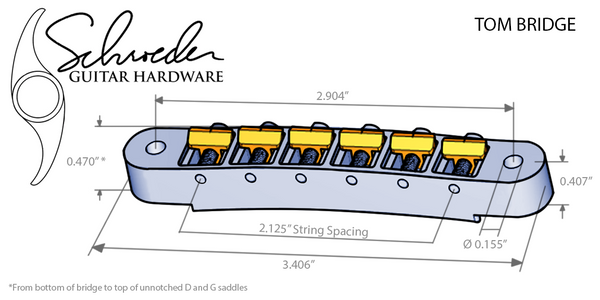

*Post spacing is 73.8mm (2.91") and holes are designed to fit 5-32 (0.156" diameter SAE) or M4 (4mm diameter metric) posts. Please verify post spacing and diameter before ordering.
Easily adapts to a 10” or 12” radius: The out-of-the-box bridge radius is 11” making it easily adjustable to 10” or 12” radius by fine tuning the saddles during setup. String spacing: 2.0625" (2 1/16")
Quality materials and construction: Lightweight aluminum body, brass screws and saddles, and stainless steel clips.
Proudly milled in the USA.
If you'd like us notch the saddles for you, the cost is $10. Please add THIS ITEM to your order and specify radius. Want to do it yourself? Check out our Tech-Tips Page (or see below) for further instructions.
